NEW QUESTION # 24
What are two options to remove Failure Byte on disks that are marked as failed? (Choose two.)
- A. Power cycle the disk shelf.
- B. Update the disk firmware.
- C. Unfail the disk
- D. Reseat the disk.
Answer: C,D
Explanation:
If a disk is marked as failed, the Failure Byte on the disk indicates that the disk has been flagged for failure.
This can be cleared using the following methods:
* What it does:Physically remove the disk from the shelf and reseat it. This action can trigger the system to re-evaluate the disk's status and clear the Failure Byte if the failure was transient or due to connection issues.
1. Reseat the Disk
* What it does:Using the disk unfail command in maintenance mode clears the Failure Byte and returns the disk to service.
* Command Example:
2. Unfail the Diskdisk unfail <disk_name>
* A. Power cycle the disk shelf:
* Power cycling the shelf may clear other transient hardware issues but does not specifically clear the Failure Byte.
* C. Update the disk firmware:
* While updating firmware can prevent future issues, it does not address disks already marked as failed.
Why Other Options Are Incorrect:
* NetApp "Disk Maintenance Guide" explains procedures to address failed disks.
* The "ONTAP Command Reference" covers the disk unfail command for clearing the Failure Byte.
References:
NEW QUESTION # 25
In which two sections of AutoSupport can you find information to analyze the following panic? (Choose two.) Panic_Message: PCI Error NMI from device(s):ErrSrcID(CorrSrc(0xf00),UCorrSrc(0x18)), RPT(0,3,0):
Qlogic FC 16G adapter in slot 1 on Controller
- A. SSRAM-LOG
- B. PCI-HIERARCHY.XML
- C. ALL-COREDUMP.XML
- D. HA-RASTRACE.TGZ
Answer: A,D
Explanation:
To analyze the provided panic error, the two sections of AutoSupport that are essential for investigation are:
* What it is:HA-RASTRACE.TGZ contains HA (High Availability) system trace logs. It records hardware diagnostics, error traces, and the HA system's response to hardware events. These logs are critical when analyzing hardware-related panics, including those caused by PCI errors.
* Why it's relevant to the panic:In the given panic message, the NMI (Non-Maskable Interrupt) error originates from a Qlogic FC 16G adapter. HA-RASTRACE.TGZ will provide detailed diagnostics, including the error reporting from the HA interconnect and other hardware diagnostics. Specifically, it may include information about how the system detected the PCI fault and any actions taken to protect the system state.
* How to analyze:
* Extract the HA-RASTRACE.TGZ file from the AutoSupport bundle.
* Review hardware-related trace messages for entries associated with the PCI bus or the Qlogic FC adapter.
* Look for specific error codes or keywords like PCI Error, NMI, or Qlogic.
* References:
* NetApp's "AutoSupport Logs and Diagnostics Guide" highlights HA-RASTRACE.TGZ as a primary resource for debugging hardware faults.
* The "Panic Troubleshooting Guide" for ONTAP systems specifies HA-RASTRACE as a key source for identifying NMI-related errors.
1. HA-RASTRACE.TGZ
* What it is:SSRAM-LOG records low-level hardware error details, including PCI device register states and uncorrectable memory errors. It is particularly useful for analyzing errors originating in peripheral hardware like network or storage adapters connected via PCI.
* Why it's relevant to the panic:The panic message explicitly references a PCI Error NMI caused by a Qlogic FC adapter. SSRAM-LOG captures detailed state information for PCI devices, which can help identify whether the fault originated in the adapter hardware, the PCI bus, or another related component.
* How to analyze:
* Extract the SSRAM-LOG from the AutoSupport bundle.
* Search for PCI-related errors, including the specific error source IDs (e.g., ErrSrcID(CorrSrc (0xf00),UCorrSrc(0x18))).
* Review the log entries to confirm the root cause of the NMI.
* References:
* The "Hardware Diagnostics and Troubleshooting Guide for ONTAP" lists SSRAM-LOG as a key file for debugging PCI errors.
* NetApp's documentation on PCI diagnostics emphasizes the use of SSRAM-LOG for validating hardware-level faults.
2. SSRAM-LOG
NEW QUESTION # 26
A SAS connection is reporting a single PHY down.
What are the two most likely causes? (Choose two.)
- A. outdated I/O module (IOM1 firmware
- B. improperly seated cable
- C. an offline shelf in the stack
- D. defective cable
Answer: B,D
Explanation:
Understanding a Single PHY Down Issue:
* In SAS environments, a PHY represents a physical layer connection between devices.
* When a single PHY reports a "down" status, it typically indicates an issue with the physical connectivity or the associated hardware.
Cause 1: Improperly Seated Cable
* If the SAS cable is not properly seated in the port, the connection for one or more PHYs may fail.
* Reseating the cable on both ends (controller and shelf) often resolves the issue.
Cause 2: Defective Cable
* A damaged or faulty SAS cable can cause PHY errors.
* Replacing the cable and verifying the connection resolves the issue in this case.
Why Other Options Are Not Likely:
* B. Outdated IOM firmware: While outdated firmware can cause other issues, it rarely affects only a single PHY.
* D. Offline shelf: If an entire shelf is offline, more than one PHY would typically be affected, as multiple connections are involved in SAS stacks.
NetApp Reference Documentation:
* Found in the "ONTAP SAS Cabling Guide" and "Shelf Troubleshooting Guide". These documents detail troubleshooting for PHY errors and common SAS hardware issues.
NEW QUESTION # 27
What are the two steps to unfail a disk in maintenance mode? (Choose two.)
- A. Reseat the disk.
- B. Use the "disk unfair command.
- C. Use the disk remove command.
- D. Remove it from the Failed Disk Registry.
Answer: B,D
Explanation:
Steps to Unfail a Disk in Maintenance Mode:
* When a disk is marked as "failed," it is added to the Failed Disk Registry and marked as unusable by the system. Unfailing a disk involves removing it from this registry and resetting its state.
Step 1: Remove the Disk from the Failed Disk Registry
* Use the command: registry remove <disk> to delete the disk from the Failed Disk Registry. This clears its "failed" status.
Step 2: Use the Disk Unfail Command
* Execute the disk unfail <disk> command to reset the disk status and make it available for use.
Key Notes:
* After unfailing, the disk will be treated as a spare and must be reassigned or re-added to an aggregate.
* If the disk remains failed after these steps, physical hardware issues may need to be addressed.
NetApp Reference Documentation:
* The "ONTAP Maintenance Mode Guide" and "Disk Management Guide" provide detailed instructions for handling failed disks and using the disk unfail command.
NEW QUESTION # 28
Which RAID type provides protection against three disk failures?
- A. RAID 5
- B. RAID-TEC
- C. RAID DP
- D. RAID 4
Answer: B
Explanation:
RAID-TEC Overview:
* RAID-TEC (Triple Erasure Coding) is a NetApp RAID technology designed to protect against up to three simultaneous disk failures.
* It is ideal for systems with high-density disks or workloads requiring extreme fault tolerance.
Why RAID-TEC Is Correct:
* RAID-TEC uses triple-parity protection, which provides redundancy against three disk failures, making it more resilient than RAID-DP or RAID 5.
* RAID-DP only protects against two disk failures, while RAID 4 and RAID 5 protect against a single failure.
NetApp Reference Documentation:
* "NetApp RAID and Data Protection Guide" details the differences between RAID-DP and RAID-TEC, highlighting RAID-TEC's ability to tolerate three failures.
NEW QUESTION # 29
When you plan an ONTAP upgrade, which NetApp tool generates a detailed upgrade plan?
- A. Active IQ Unified Manager
- B. Active IQ Config Avisor
- C. ONTAP System Manager
- D. Upgrade Advisor
Answer: D
Explanation:
The Upgrade Advisor is a NetApp tool that generates a detailed, step-by-step plan for upgrading an ONTAP system. This tool is available through the Active IQ portal and helps ensure a smooth and risk-free upgrade process.
* Provides a tailored upgrade plan based on the current ONTAP version, cluster configuration, and desired target version.
* Identifies potential risks, compatibility issues, and pre-requisite tasks for the upgrade.
* Offers detailed instructions for each stage of the upgrade process.
Key Features of Upgrade Advisor:
* A. ONTAP System Manager:
* While System Manager can be used to initiate upgrades, it does not generate a detailed upgrade plan.
* B. Active IQ Unified Manager:
* Unified Manager focuses on monitoring and management but does not provide upgrade plans.
* D. Active IQ Config Advisor:
* Config Advisor checks for best practices and configuration issues but is not used for generating upgrade plans.
Why Other Options Are Incorrect:
* NetApp's "ONTAP Upgrade Guide" emphasizes the use of Upgrade Advisor for planning upgrades.
* Active IQ documentation provides detailed instructions on accessing and using the Upgrade Advisor tool.
References:
NEW QUESTION # 30
Which two tools can be used to recover an inconsistent aggregate? (Choose two.)
- A. wafliron
- B. wafl snapiron
- C. file check
- D. wafl_check
Answer: A,D
Explanation:
To recover an inconsistent aggregate, the following tools can be used:
* What it does:This tool is used to perform a consistency check on WAFL metadata. It identifies and attempts to fix WAFL inconsistencies in aggregates.
* When to use:Run wafl_check after identifying WAFL inconsistencies to repair minor metadata issues.
1. wafl_check
* What it does:This tool repairs WAFL inconsistencies by reconstructing metadata. It is more powerful than wafl_check and should only be run under NetApp Support guidance, as improper use can result in data loss.
* When to use:Use wafliron for severe WAFL inconsistencies that cannot be resolved by wafl_check.
2. wafliron
* A. file check:
* This is not a valid NetApp tool.
* C. wafl snapiron:
* While similar in name, snapiron is used for snapshot recovery, not aggregate recovery.
Why Other Options Are Incorrect:
* "ONTAP Aggregate Troubleshooting Guide" details the usage of wafl_check and wafliron.
* NetApp Support documentation provides guidelines for recovering inconsistent aggregates.
References:
NEW QUESTION # 31
On an AFF A700 system, a SAS stack is connected to SAS ports 2a and 2b. The system has an additional 4- port SAS card in slot 9.
How should the cabling the corrected for best practices?
- A. Use port 2b and 9d.
- B. Use port 2a and 9b.
- C. Use port 2a and 9a.
- D. Use port 2a and 2c.
Answer: C
Explanation:
Best Practices for SAS Cabling in AFF A700 Systems:
* The AFF A700 system has built-in SAS ports (e.g., 2a and 2b) as well as additional SAS ports on optional SAS cards.
* To ensure high availability and redundancy, it is recommended to distribute SAS connections across multiple SAS ports from different controllers or slots.
Why Port 2a and 9a Are Recommended:
* Port 2a is a built-in SAS port on the AFF A700 system.
* Port 9a belongs to the additional SAS card in slot 9.
* By connecting the stack using 2a and 9a, you utilize different SAS domains (built-in controller ports and add-on card ports), providing both path redundancy and load balancing.
NetApp Reference Documentation:
* "NetApp Hardware Universe" and "ONTAP Hardware Installation Guide" highlight that SAS cabling for redundancy should leverage different ports, including those from separate SAS controllers or add-on cards.
* NetApp's best practice guidelines suggest avoiding connections to the same SAS controller or port group for critical stacks.
NEW QUESTION # 32
Which three commands can be used to manually generate a kernel core file? (Choose three.)
- A. SP> system power cycle
- B. ::> reboot -node <node_name> -dump true
- C. ::> system node panic -node <node_name>
- D. SP> system core
- E. ::> halt -dump true -node <node_name>
Answer: B,C,E
Explanation:
To manually generate a kernel core file in ONTAP, the following commands can be used:
* What it does:Reboots the specified node and generates a core dump before rebooting.
* Example Usage:
1. ::> reboot -node <node_name> -dump truereboot -node <node_name> -dump true
* What it does:Halts the specified node and generates a core dump before shutting down.
* Example Usage:
2. ::> halt -dump true -node <node_name>halt -dump true -node <node_name>
* What it does:Forces a panic on the specified node, which triggers a kernel core dump.
* Example Usage:
3. ::> system node panic -node <node_name>system node panic -node <node_name>
* A. SP> system power cycle:
* This command reboots the system from the Service Processor but does not generate a core dump.
* E. SP> system core:
* This command displays core file information but does not generate a new core dump.
Why Other Options Are Incorrect:
* NetApp "Kernel Core Dump Guide" explains the use of reboot, halt, and panic commands to trigger core dumps.
* ONTAP CLI Reference includes the syntax for these commands.
References:
NEW QUESTION # 33

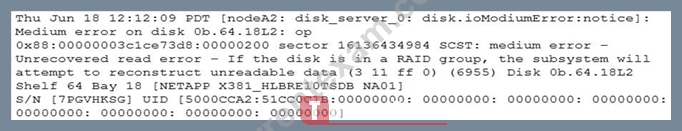

While performing a health check on a cluster, you notice the following entries in the cluster event log:
Referring to the exhibit, which of the following actions do you take?
- A. Use diskcopy to copy the disk to a working spare.
- B. Review the current firmware and known issues.
- C. Reseat the disk.
- D. Sanitize the disk.
Answer: B
Explanation:
Analyzing the Error in the Event Log:
* The log entry indicates a medium error on a disk, suggesting an unrecoverable read issue.
* While the RAID subsystem attempts to reconstruct unreadable data, this error might indicate a firmware issue or a compatibility problem with the disk.
Why Reviewing Firmware and Known Issues Is Important:
* Medium errors can sometimes result from outdated or incompatible firmware.
* By reviewing firmware release notes and known issues for the disk model (NETAPP X381_HLBRE10TSDB in this case), you can identify if this is a known issue and resolve it by updating the firmware.
Other Options:
* Sanitize the disk (Option A): Not relevant here, as sanitization is used for secure data erasure.
* Reseat the disk (Option B): Useful for addressing hardware seating issues, but not the first step here.
* Diskcopy to a spare (Option D): This is a last-resort recovery step and not the primary action.
NetApp Reference Documentation:
* "ONTAP Disk Management Guide" and "Disk Firmware Release Notes" detail how to handle medium errors and update firmware.
NEW QUESTION # 34
Which two tools can you use to invoke AutoSupport? (Choose two.)
- A. NetApp Cloud Insights
- B. CLI
- C. the SmartSolve tool
- D. the NetApp Active IQ website
Answer: B,D
Explanation:
To invoke AutoSupport in ONTAP, the following tools can be used:
* How to use:Run the command:
1. CLI (Command Line Interface)python
Copy code
autosupport invoke -node <nodename> -type all
* This triggers AutoSupport to collect and send logs and system information.
* How to use:Log in to the Active IQ portal and use its interface to request an AutoSupport message from the connected ONTAP systems.
2. NetApp Active IQ website
* A. NetApp Cloud Insights:
* This tool is used for monitoring and performance analysis, not for triggering AutoSupport messages.
* D. the SmartSolve tool:
* SmartSolve is used for case resolution guidance but does not invoke AutoSupport.
Why Other Options Are Incorrect:
* "ONTAP AutoSupport Guide" provides instructions for invoking AutoSupport via CLI and Active IQ.
References:
NEW QUESTION # 35
A node has failed.
Which two conditions must be met for an automatic takeover to be triggered? (Choose two.)
- A. The cluster network must be available.
- B. Mailbox disks must be reachable.
- C. NVRAM must be synchronized.
- D. The combined utilization of both nodes must be less than 100%.
Answer: B,C
Explanation:
For an automatic takeover to occur in an HA pair, the following conditions must be met:
* The HA pair uses mailbox disks to coordinate and ensure that both nodes have consistent cluster state information.
* If the mailbox disks are not reachable, the takeover process cannot proceed.
1. Mailbox Disks Must Be Reachable:
* The nodes in an HA pair continuously mirror NVRAM data to ensure that writes are protected.
* If NVRAM is not synchronized, the takeover cannot safely handle active workloads.
2. NVRAM Must Be Synchronized:
* A. The combined utilization of both nodes must be less than 100%:
* This is not a requirement for automatic takeover. ONTAP can handle higher utilization during failover scenarios.
* B. The cluster network must be available:
* While the cluster network is critical for normal operation, takeover can still occur if the cluster network is unavailable, as long as the HA interconnect is operational.
Why Other Options Are Incorrect:
* NetApp "ONTAP High Availability Guide" outlines the requirements for automatic takeover in HA pairs.
* "ONTAP NVRAM Synchronization and Failover Guide" explains NVRAM mirroring requirements.
References:
NEW QUESTION # 36
An aggregate has experienced a multiple disk failure due to a failing I/O module (IOM). The module has been replaced and the aggregate is still failed.
What step can be taken to recover the aggregate?
- A. Unfail the drives in the order that they failed from the clustershell
- B. Unfail the drives from maintenance mode.
- C. Use diskcopy from maintenance mode.
- D. Run wafliron from the boot_menu.
Answer: B
Explanation:
When an aggregate fails due to multiple disk failures caused by a faulty I/O module (IOM), the first step after replacing the faulty IOM is to manually unfail the affected drives. This process is done in maintenance mode.
* Enter Maintenance Mode:
* Reboot the node and interrupt the boot process to access maintenance mode.
* Identify Failed Drives:
* Use the command:
Steps to Recover the Aggregate:sql
Copy code
storage show disk -broken
This command lists all failed (broken) drives.
* Unfail the Drives:
* Use the following command for each failed drive:
php
Copy code
disk unfail <disk-name>
* Reconstruct the Aggregate:
* Once all drives are unfail, the system should begin reconstructing the RAID groups in the aggregate.
* A. Use diskcopy from maintenance mode:
* Diskcopy is used for cloning or copying data between disks, not for recovering failed aggregates.
* B. Run wafliron from the boot_menu:
* wafliron is used to repair WAFL inconsistencies, but it does not help recover failed aggregates due to disk issues.
* D. Unfail the drives in the order that they failed from the clustershell:
* Drives must be unfail in maintenance mode, not from the clustershell.
Why Other Options Are Incorrect:
* NetApp's "Aggregate and RAID Troubleshooting Guide" explains the process of recovering aggregates and using maintenance mode commands.
* "ONTAP Disk Recovery Guide" outlines steps to unfail disks and recover RAID groups.
References:
NEW QUESTION # 37
You have identified that the file named quarterly_25.docx is inconsistent.
Which nodeshell command reports whether there are Snapshot copies available?
- A. "priv set advanced; aggr wafliron start -f quarterly_25.docx"
- B. "priv set diag; snap list -f quarterly_25.docx"
- C. "priv set advanced; file check -f quarterly_25.docx"
- D. "priv set diag; file check -v <voiname> -i <field>"
Answer: D
NEW QUESTION # 38
At what stage is a write acknowledged to a client?
- A. when the write is present in the local node RAM and NVRAM
- B. when the write is present in the NVRAM on the local node and its HA partner
- C. when the write has been flushed to disk
- D. when the write has been flushed from NVRAM to RAM
Answer: B
Explanation:
* In a clustered ONTAP system, write requests are acknowledged to the client only after they are securely stored in NVRAM on both the local node and its HA (High Availability) partner.
* This ensures redundancy and data protection in case of a node failure.
Write Acknowledgment in NetApp ONTAP:
* A. when the write is present in the local node RAM and NVRAM:
* Writes are not acknowledged until the HA partner also stores the data in its NVRAM.
* B. when the write has been flushed to disk:
* Writes are acknowledged before they are written to disk, as NVRAM ensures durability.
* D. when the write has been flushed from NVRAM to RAM:
* Data is not acknowledged based on RAM; NVRAM on both nodes is the requirement.
Why Other Options Are Incorrect:
* NetApp's "ONTAP Write I/O Processing Guide" explains the role of NVRAM and HA in write acknowledgment.
* "Data Protection in ONTAP" highlights the synchronization of NVRAM between HA partners.
References:
NEW QUESTION # 39
Which type of core file is generated when a node panics?
- A. sync core
- B. mgwd core
- C. user space core
- D. kernel core
Answer: D
Explanation:
When a node panics in ONTAP, a kernel core file is generated. This core file contains information about the kernel's state at the time of the panic and is essential for debugging system crashes.
* A kernel core file is produced during a node panic to capture information about the kernel, memory, and processes that led to the crash.
* The core file is stored on the root aggregate by default and can be uploaded to NetApp Support using the autosupport invoke-core-upload command.
Key Details:
* A. mgwd core:
* This is related to the Management Gateway daemon, which handles management traffic. It does not generate a core file during a panic.
* B. user space core:
* User space cores are generated for processes running in user space, not for kernel panics.
* C. sync core:
* Sync cores refer to synchronized cores for debugging but are not the primary type generated during a node panic.
Why Other Options Are Incorrect:
* "ONTAP Panic Troubleshooting Guide" specifies kernel core files as the output of a node panic.
* "ONTAP Core File Management Guide" details the handling of kernel core files after a crash.
References:
NEW QUESTION # 40
After a panic, the customer asks you to explain the error "watchdog timeout." Which explanation would be appropriate?
- A. An optional component included with Active IQ Unified Manager.
It notifies a user if watchdog fails to reach the storage system within a certain period. - B. A service that detects and recovers from computer malfunctions.
A hardware or software error prevents update of watchdog and it induces a system panic. - C. A service that monitors network activity and protects data.
A watchdog induces system panic to protect data if malicious activity is detected. - D. An optional software that monitors system performance.
An overloaded system fails to reset the watchdog and watchdog induces a system panic.
Answer: B
Explanation:
What Is a Watchdog Timeout?
* The watchdog is a software or hardware mechanism that monitors the system's health and ensures it is operating correctly.
* If the system fails to respond or update the watchdog timer within the specified time, the watchdog triggers a system panic to avoid further corruption or damage.
Cause of Watchdog Timeout:
* This usually occurs due to:
* A hardware failure (e.g., CPU or memory issue).
* A software bug causing a system hang or crash.
* The panic ensures the system stops operation to preserve data integrity and aid in troubleshooting.
NetApp Reference Documentation:
* "ONTAP Troubleshooting Guide" and "Core Dump Analysis Guide" provide details on interpreting watchdog timeouts and recommended actions.
NEW QUESTION # 41
A node has panicked with a PCI/NMI error. Giveback has not been performed.
Which two commands should you run to collect the logs to determine the cause? (Choose two.)
- A. event log show
- B. pelog -a -g=2
- C. rdfile /mroot/etc/log/SSRAM
- D. show pci -v
Answer: B,C
Explanation:
To diagnose a PCI/NMI error and collect logs, use the following commands:
* What it does:This command collects PCI error logs, including detailed information about PCI devices and the errors that caused the panic.
* How to use:Run the command from the nodeshell to capture the required PCI log entries.
1. pelog -a -g=2
* What it does:This command reads the SSRAM log file, which contains low-level error information related to PCI and other hardware subsystems.
* How to use:Run the command to view the log entries directly for detailed troubleshooting.
2. rdfile /mroot/etc/log/SSRAM
* B. show pci -v:
* While this command displays PCI device information, it does not provide detailed error logs.
* D. event log show:
* This displays event log entries but does not contain the specific PCI or NMI-related logs required for diagnosing the panic.
Why Other Options Are Incorrect:
* "ONTAP Hardware Troubleshooting Guide" lists pelog and SSRAM as tools for analyzing PCI errors.
* "ONTAP Panic Analysis Guide" emphasizes the importance of collecting detailed hardware logs.
References:
NEW QUESTION # 42
Which two statements are correct when describing L1 and L2 Watch Dog Resets (WDR)? (Choose two.)
- A. L1 WDR performs a soft reset.
- B. L2 WDR requests creation of a core dump before reset.
- C. L2 WDR is initiated after 2 seconds from the event.
- D. L1 WDR is initiated after 0.5 seconds from the event.
Answer: B,C
Explanation:
* Description:
* L1 WDR is a hardware-initiated reset that occurs when the system detects an unrecoverable error or lockup lasting 0.5 seconds.
* Key Characteristics:
* It performs a hard reset, meaning the system immediately reboots without creating a core dump.
1. L1 Watchdog Reset (WDR):
* Description:
* L2 WDR is initiated when the system fails to recover from a critical fault after 2 seconds.
* Key Characteristics:
* It requests a core dump to capture the system state for diagnostic purposes before performing a reset.
2. L2 Watchdog Reset (WDR):
* B. L1 WDR is initiated after 0.5 seconds from the event:
* This is incorrect because L1 WDR performs a hard reset and does not initiate after 2 seconds.
* C. L1 WDR performs a soft reset:
* This is incorrect because L1 WDR performs a hard reset, not a soft reset.
Why Other Options Are Incorrect:
* "ONTAP Panic Analysis Guide" describes the behavior and timing of L1 and L2 WDR events.
* NetApp Support documentation on system resets explains the differences between L1 and L2 watchdog resets.
References:
NEW QUESTION # 43
Which LOADER prompt command ensures that POST is done on boot?
- A. setenv POST=true
- B. boot_ontap
- C. boot_diag
- D. bye
Answer: A
Explanation:
To ensure that POST (Power-On Self-Test) runs on boot, the setenv POST=true command is used at the LOADER prompt. This command enables the system to perform POST diagnostics before proceeding with the boot process.
* POST Purpose: POST checks system hardware components (such as memory, disk, and controllers) for faults before loading the ONTAP kernel.
* How to Use:
* At the LOADER prompt, type:
Key Details:arduino
Copy code
setenv POST=true
* Save the configuration and reboot the system.
* B. bye:
* This command restarts the system but does not ensure that POST runs on boot.
* C. boot_diag:
* This command boots the system into diagnostic mode but is not directly related to enabling POST on boot.
* D. boot_ontap:
* This command boots ONTAP but skips POST if it is not explicitly enabled.
Why Other Options Are Incorrect:
* NetApp "ONTAP System Boot and Recovery Guide" describes setenv POST=true for enabling POST diagnostics.
References:
NEW QUESTION # 44
When you add a new disk to an ONTAP 9.1 system, you see an error that the disk "has raid label with version (16), which is not within the currently supported range (14-15)." What is one possible cause of this error?
- A. The disk is a non-zeroed spare.
- B. The disk needs to be assigned to the new system.
- C. The disk was in a system with a newer version of ONTAP software
- D. The disk firmware is too new for ONTAP software.
Answer: C
Explanation:
Explanation of RAID Label Versions:
* Disks in ONTAP systems contain metadata known as RAID labels. These labels store critical information such as ownership, aggregate membership, and versioning.
* The error indicates a mismatch between the RAID label version on the disk and the supported versions of the ONTAP system.
Why Option D Is Correct:
* If a disk has a RAID label created by a newer version of ONTAP (e.g., version 16) and is then inserted into a system running an older version of ONTAP (e.g., supporting versions 14-15), the label will not be recognized.
* This mismatch causes ONTAP to reject the disk.
Resolution:
* Upgrade the ONTAP version to match the RAID label on the disk.
* Alternatively, zero the disk to reset its RAID label, but this will erase all data on the disk.
NetApp Reference Documentation:
* The "ONTAP Disk Management Guide" and "ONTAP Compatibility Matrix" explain RAID label versions and compatibility issues when moving disks between ONTAP systems.
NEW QUESTION # 45
Your customer notices that their AFF A220 high-availability (HA) system is showing Single-Path HA.
How do you make the system into multipath HA?
- A. 0a and 0d on both controllers should be connected
- B. 0a and 0b on both controllers should be connected.
- C. 0c and 0d on both controllers should be connected.
- D. 0a and 0c on both controllers should be connected.
Answer: D
Explanation:
In a NetApp high-availability (HA) configuration, multipath HA ensures redundancy by providing two independent paths from each controller to the connected storage. If the system is currently showing Single- Path HA, it means only one path is operational or connected, which is a potential single point of failure.
To convert the configuration to multipath HA, additional cabling must be configured to establish the second path. For the AFF A220 system, the correct connections are as follows:
Explanation of the Correct answer:
* AFF A220 Port Configuration for HA:
* Each controller in an AFF A220 has ports labeled 0a, 0b, 0c, and 0d for connectivity.
* In a multipath HA configuration, each controller must have two independent paths to the connected storage via the partner controller's disk shelves.
* Correct Cabling for Multipath HA:
* Port 0a on both controllers must be connected to the corresponding port (e.g., disk shelf stack or Inter-Switch Link).
* Port 0c on both controllers must also be connected to complete the redundant path.
* These connections ensure that there are two independent data paths between the controllers and the storage system, providing fault tolerance in case one path fails.
* Single-Path HA to Multipath HA:
* If the system currently shows Single-Path HA, it is likely that only one set of ports (e.g., 0a and
0b) are cabled.
* Adding the additional connections on 0a and 0c establishes the second path required for multipath HA.
Why the Other Options Are Incorrect:
* A. 0a and 0b on both controllers should be connected:
* This option only connects ports 0a and 0b, which does not establish a multipath HA configuration. Port 0c is also required for redundancy.
* C. 0c and 0d on both controllers should be connected:
* Connecting only 0c and 0d would leave ports 0a disconnected, failing to establish a proper multipath HA setup. Both 0a and 0c are required.
* D. 0a and 0d on both controllers should be connected:
* Connecting 0a and 0d is not the standard configuration for multipath HA in an AFF A220 system. Port 0c is part of the required configuration.
How to Verify the Configuration:
* Use the following ONTAP command to verify the HA status:
cluster::> storage failover show -fields multipath-ha
* This will display whether the system is in multipath HA or single-path HA mode.
* Check the port connectivity:
cluster::> network port show -node <node_name>
References:
* NetApp Hardware Installation and Setup Guide for AFF A220.
* NetApp Knowledge Base: "Configuring Multipath HA for AFF Systems."
* ONTAP 9.x System Administration Guide: "High Availability Configurations." Understanding Single-Path HA vs. Multipath HA:
* Single-Path HA indicates that only one path exists between the controllers and the connected shelves, leading to limited redundancy.
* Multipath HA requires both controllers to have redundant SAS connections to the shelves.
Cabling for Multipath HA in AFF A220 Systems:
* To achieve multipath HA, you must connect 0c and 0d on both controllers to the appropriate stack ports on the shelves.
* This ensures dual paths for each controller to access the storage shelves.
NetApp Reference Documentation:
* Refer to the "ONTAP Multipath HA Configuration Guide" and the "NetApp Hardware Installation Guide" for AFF A220 systems for cabling diagrams and best practices.
NEW QUESTION # 46
......
NS0-093 Exam Dumps, NS0-093 Practice Test Questions: https://dumpscertify.torrentexam.com/NS0-093-exam-latest-torrent.html
